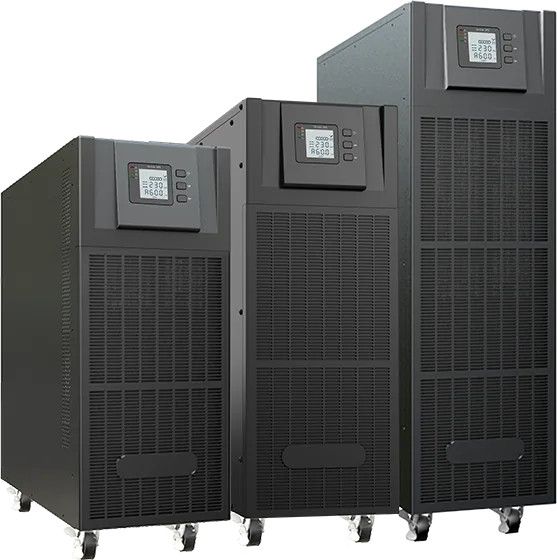

Online UPS · Three Phase In / Single Phase Out · High Frequency
3XP Series
A true double-conversion online UPS that takes a three-phase supply and delivers clean single-phase power, available as a standard unit with built-in batteries or a long-run unit for external banks.
Grid InSags · surges · harmonics
UPS Out230 V pure sine
Choose Capacity:
- Capacity
- 10–20 kVA
- Efficiency
- 91%, AC and battery mode
- Transfer Time
- 0 ms
- Output Power Factor
- 0.8
- Input Window
- 190–520 VAC, three phase
- Versions
- Standard or Long-Run
Ideal For:Computer NetworksLANsOfficesClinics
Key Features
- True Double ConversionBuilt for computer and network loads.
- Three-In, Single-OutDraws power evenly across all three phases.
- Wide Input Window190–520 VAC keeps you off battery longer.
- 0 ms TransferNo break to battery or to bypass.
- 50 Hz Frequency Converter ModeRun equipment from a different supply frequency.
- EPO and Generator CompatibleEmergency power off and stable on generators.
- 3-Stage Extendable ChargingOptimised battery performance and life.
- SNMP, USB and RS-232Monitoring on Windows, Linux and Mac.
Specifications
| Specification | 10 kVA3XP 10K | 15 kVA3XP 15K | 20 kVA3XP 20K |
|---|---|---|---|
| Input | |||
| Rated Capacity | 10000 VA / 8000 W | 15000 VA / 12000 W | 20000 VA / 16000 W |
| Nominal Voltage | 3 × 400 VAC (3Ph + N) | ||
| Input Voltage Range | 190–520 VAC at 50% load · 305–520 VAC at 100% load | ||
| Frequency Range | 46–54 Hz | ||
| Output | |||
| Output Voltage | 208 / 220 / 230 / 240 VAC, single phase | ||
| Voltage Regulation | ± 1% (battery mode) | ||
| Frequency, Synchronised | 46–54 Hz | ||
| Frequency, Battery Mode | 50 Hz ± 0.1 Hz | ||
| Waveform | Pure sine wave · THD ≤ 3% linear, ≤ 5% non-linear | ||
| Crest Factor | 3 : 1 | ||
| Transfer Time | 0 ms to battery · 0 ms to bypass | ||
| Efficiency | |||
| AC Mode | 91% | ||
| Battery Mode | 91% | ||
| Battery | |||
| Standard Unit | Built-in 12 V 9 Ah batteries | ||
| Batteries, Standard Unit | 16 or 20 | 16 or 20 | 16 or 20 × 2 strings |
| Charging Voltage | 218.4 VDC (16 batteries) · 273 VDC (20 batteries) | ||
| Recharge Time | 9 hours to 90% | ||
| Charging Current | 1 A | 1 / 2 / 4 A (2 A default) | 1 / 2 / 4 A (2 A default) |
| Long-Run Charger | 1 / 2 / 4 A adjustable (4 A default) | ||
| General | |||
| Display | LCD with status, load, battery, input / output voltage, discharge timer and faults | ||
| Communication | Smart RS-232 / USB · SNMP card optional | ||
| Dimensions D × W × H, Standard | 442 × 190 × 688 mm | 442 × 190 × 688 mm | 815 × 250 × 826 mm |
| Net Weight, Standard | 66–76 kg | 67–78 kg | 125–145 kg |
| Net Weight, Long-Run | 15 kg | 16 kg | 18.95 kg |
| Humidity | 0–95% RH at 0–50 °C, non-condensing | ||
| Noise | < 60 dB at 1 m | ||
* Each model is available as a standard unit with built-in batteries or a long-run (L) unit for external battery banks. Specifications may change as products are improved.
