Online UPS · Single Phase · Output Isolation Transformer

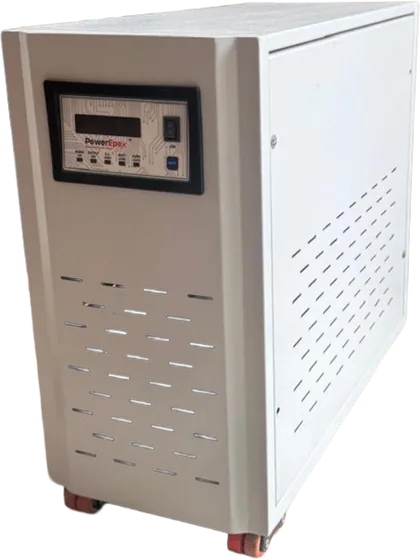

PE Series
A rugged online UPS with a built-in output isolation transformer and up to 93% efficiency, built to handle tough Indian power conditions.
Grid InSags · surges · harmonics
UPS Out230 V pure sine
Choose Capacity:
- Capacity
- 6–10 kVA
- Efficiency
- 93%
- Input Power Factor
- > 0.99
- Output THD
- ≤ 1%
- Battery
- 192 VDC
- Backup
- 2–10 hours with built-in charger
Ideal For:ServersMedicalLaboratoryIndustrial Control
Key Features
- True Online Double ConversionClean power with no break to battery.
- Output Isolation TransformerStrong protection against noise and spikes.
- Fully Digital ControlMicroprocessor control for precise regulation.
- Up to 93% EfficiencyLower heat and running cost.
- IGBT-Based ChargerSmart battery management, 1–10 A.
- 2–10 Hours BackupIn-built high-rated charger for long backup.
- Cold StartStarts from batteries when there is no mains.
- Complete ProtectionShort circuit, overload and voltage protection.
Specifications
| Specification | 6 kVAPE 6 kVA | 10 kVAPE 10 kVA |
|---|---|---|
| Input | ||
| Input Voltage Range | 160–280 VAC, single phase (L + N + PE) | |
| Frequency Range | 50 Hz ± 10% | |
| Input Power Factor | > 0.99 | |
| Output | ||
| Output Voltage | 220 / 230 / 240 VAC ± 1% | |
| Output Power Factor | 0.8 standard (0.9 optional) | |
| Output Frequency | 50 Hz ± 0.1% | |
| Waveform THD | ≤ 1% | |
| Efficiency | 93% | |
| Overload | 110–125% for 10 min · 125–150% for 60 s · > 150% for 1 s | |
| Isolation Transformer | Built-in | |
| Battery | ||
| DC Voltage | 192 VDC (168 / 180 VDC optional) | |
| Charging Current | 1–10 A standard, higher optional | |
| Recharge Time | 4–5 hours to 95% | |
| General | ||
| Display | LCD and LED: voltage, frequency, load and battery %, operating mode | |
| Protection | Battery low, overload, short circuit, over / under voltage | |
| Communication | RS232 · SNMP, Modbus, dry contact, USB, RS-485 optional | |
| Operating Temperature | 0–50 °C | |
| Noise | ≤ 45 dB | |
| Dimensions W × D × H | 250 × 550 × 680 mm | 280 × 615 × 685 mm |
| Net Weight | 52 kg | 76 kg |
| Safety Standards | IEC / EN 62040-1, IEC / EN 60950-1 | |
* Specifications may change as products are improved.
