Online UPS · Single Phase · Isolation Transformer

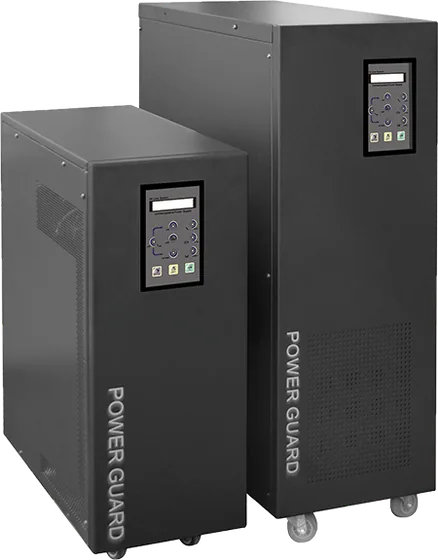

GP Series
A heavy-duty online UPS with built-in isolation transformer, wide input window and full-load cold start, made for machines and harsh supply conditions.
Grid InSags · surges · harmonics
UPS Out230 V pure sine
Choose Capacity:
- Capacity
- 6–10 kVA
- Efficiency
- > 92% online
- Transfer Time
- 0 ms
- Output THD
- < 1.5% linear load
- Input Window
- 165–275 VAC
- Battery
- 192 VDC · SMF or tubular
Ideal For:MachinesWorkshopsClinicsOffices
Key Features
- Double-Conversion OnlinePure sine wave with phase lock and regulation.
- Built-In Isolation TransformerStrong protection against interference.
- Static Bypass SwitchLoad stays powered from mains if the UPS fails.
- Wide Input Window165–275 VAC for harsh supply conditions.
- Generator FriendlyWide input frequency range for all generators.
- Full-Load Cold StartStarts straight from the battery bank.
- Float and Boost ChargingSupports SMF VRLA and tubular batteries.
- Self-DiagnosisChecks itself before every start-up.
Specifications
| Specification | 6 kVAGP06 | 10 kVAGP10 |
|---|---|---|
| Input | ||
| Nominal Voltage | 220 / 230 VAC | |
| Input Voltage Range | 165–275 VAC | |
| Frequency Range | 50 / 60 Hz ± 5% | |
| Input Power Factor | > 0.97 with filter | |
| Output | ||
| Rated Capacity | 6 kVA / 4.8 kW | 10 kVA / 8 kW |
| Output Voltage | 220 / 230 VAC ± 0.5% | |
| Output Frequency | 50 / 60 Hz ± 0.5% | |
| Output Power Factor | 0.8 (0.9 optional) | |
| Waveform THD | < 1.5% linear load | |
| Crest Factor | 3 : 1 | |
| Efficiency | > 92% online | |
| Battery | ||
| DC Voltage | 192 VDC | |
| Battery Types | SMF VRLA or tubular | |
| General | ||
| Transfer Time | 0 ms, line ⇄ battery | |
| Overload | > 125%: 1 min · > 150%: 200 ms | |
| Communication | RS232 · SNMP and dry contact optional | |
| Operating Temperature | 0–40 °C | |
| Noise | < 55 dB | |
| Dimensions W × D × H | 230 × 580 × 720 mm | 305 × 585 × 864 mm |
| Net Weight | 63 kg | 82 kg |
| Safety Standards | IEC / EN 62477-1, IEC / EN 62040-1 | |
* Specifications may change as products are improved.
