Online UPS · Three Phase In / Out · Double DSP Control

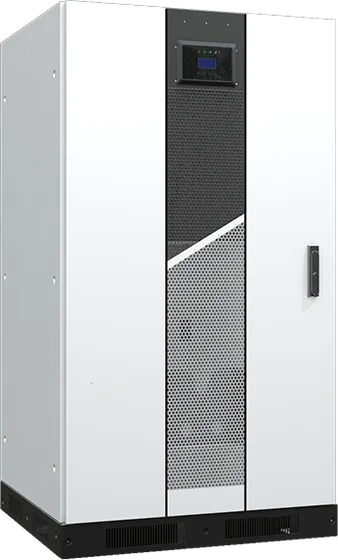

EPL Series
A scalable three-phase online UPS with dual DSP control, N+X parallel redundancy up to 6 units and generator-friendly power walk-in, for large commercial and industrial sites.
Grid InSags · surges · harmonics
UPS Out230 V pure sine
Choose Capacity:
- Capacity
- 10–160 kVA
- Efficiency
- Up to 92.5%
- Transfer Time
- 0 ms
- Output Power Factor
- 0.8
- Parallel
- Up to 6 units, N+X
- Battery
- 384 VDC (360–384 VDC)
Ideal For:FactoriesData CentresHospitalsLarge Buildings
Key Features
- Dual DSP ControlA more stable and reliable system.
- N+X Parallel RedundancyUp to 6 units, with automatic fault isolation.
- LBS SynchronisationKeeps two independent UPS systems in sync.
- Power Walk-InSoft rectifier start reduces the generator size you need.
- Generator ModeShares load between generator and battery.
- Wide Input Window−25% / +20% voltage and 45–65 Hz.
- Smart Battery ManagementAuto float / boost charging and periodic self-test.
- Multi-ProtectionSelf-diagnosis before every start-up.
Specifications
| Specification | 10 kVAEP10-L | 20 kVAEP20-L | 30 kVAEP30-L | 40 kVAEP40-L | 60 kVAEP60-L | 80 kVAEP80-L | 100 kVAEP100-L | 120 kVAEP120-L | 160 kVAEP160-L |
|---|---|---|---|---|---|---|---|---|---|
| Input | |||||||||
| Input Voltage Range | 380 / 400 / 415 VAC (−25% / +20%), 3Ph + PE | ||||||||
| Frequency Range | 50 / 60 Hz ± 5% | ||||||||
| Input Power Factor | ≥ 0.97 with optional filter | ||||||||
| Output | |||||||||
| Rated Capacity | 10 kVA / 8 kW | 20 kVA / 16 kW | 30 kVA / 24 kW | 40 kVA / 32 kW | 60 kVA / 48 kW | 80 kVA / 64 kW | 100 kVA / 80 kW | 120 kVA / 96 kW | 160 kVA / 128 kW |
| Output Voltage | 380 / 400 / 415 VAC ± 1%, 3Ph + N + PE | ||||||||
| Output Frequency | 50 / 60 Hz ± 0.05% | ||||||||
| Waveform THD | ≤ 2% linear load | ||||||||
| Crest Factor | 3 : 1 | ||||||||
| Efficiency | 88% to 92.5% depending on model | ||||||||
| Overload | ≤ 110%: 60 min · ≤ 125%: 10 min · ≤ 150%: 1 min, then bypass | ||||||||
| Bypass | |||||||||
| Voltage Protection Range | +20% / −40%, adjustable | ||||||||
| Frequency Protection Range | ± 10%, adjustable | ||||||||
| Battery | |||||||||
| DC Voltage | 384 VDC (360–384 VDC) | ||||||||
| Transfer Time | 0 ms, line to battery | ||||||||
| General | |||||||||
| Display | LCD with LED mimic diagram · 7-inch touch screen optional | ||||||||
| Communication | RS232, RS485 (Modbus), EPO · SNMP and dry contact optional | ||||||||
| Net Weight | 145 kg | 155 kg | 190 kg | 242 kg | 315 kg | 365 kg | 420 kg | 635 kg | 740 kg |
| Operating Temperature | 0–40 °C | ||||||||
| Noise | < 58 dB to < 68 dB depending on model | ||||||||
| Standards | IEC / EN 62040-1, -2, -3 · IEC 62477-1 | ||||||||
* Optional: harmonic filter, SNMP adapter, LBS cables, battery temperature sensor, bypass current-sharing inductor. Specifications may change as products are improved.
